MODEL SVC-ST500 SEL CALL SIGNAL TRANSMITTER WITH SIGNAL GENERATOR
SPECIFICATION
1,Sel call Signal Generator
 External transmitter or SSB  Two systems
 External signal output  0dBm
 Transmission switch  Internal, external x1, and external x2
 Tone method  4 tone signal series
 No. of call  It switches twice once.
 No. of memorized code number  00-99 100 code numbers memorized.
2,Signal Transmitter
 Transmission output  3W
 Type of emission  A2B
 Oscillation method  Frequency synthesizer method
 Call  It switches twice once.
 Transmit frequency  2331.5kHz
3,others
 Power supply    AC100V (220V option) DC22~32V
 Dimention  Wx273mm  Hx137mm
 Dx268mm weight about 3.5kg

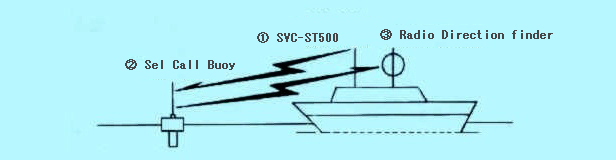

Sel call buoy system
1. Compose ID by signal generator for each buoy and sent by transmitter.
2. If the selection number is correct, the buoy that receives the radio wave responds, and sends the radio wave.
3. The radio wave signal from the sel call buoy is received by the directional finder, and it searches for the direction with the buoy.
Specification
Model SVC-ST500 Sel call signal transmitter with signal generator

SVC-ST500 Type(PDF 268KB)
