FISHING EQUIPMENTS
ECHO SOUNDER SATELLITE BUOY
RYOKUSEI HIGH-SPEED COMMUNICATION
ECHO SOUNDER BUOY MARINE STAR-F MODEL SV-1800ES
※RESPONSE TIME:WITHIN 3 MINUTES
MARINE STAR-F MODEL SV-1800ES

Ship station: Example of display of buoy and Schooling fish information on chart
FEATURES
By knowing the Schooling fish information under buoys, it is easier to set up an operation plan, which leads to a reduction in fuel costs, fishing fees and other costs.
It is containing the transducer inside that makes it difficult for shellfish and seaweed to adhere.
You can suppose quantity of schooling fish.
Since the number of Schooling fish information data can be displayed, the transition of Schooling fish volume is obvious.
It is possible to share location information and schooling fish information with fishing vessels.
It will automatically transmit Scholling fish data every day to the sunrise time of the buoy's waters.
Every hour Total of 24 times schooling fish data sent at Sunrise time.
You can check the school fish information in the best condition to see with the GAIN (sensitivity) adjustment function.
The buoy response time is greatly shortened (compared to our former model buoy)
Water temperature is displayed in steps of 0.1 ° C.
With a divider function to calculate the total distance between multiple points and the arrival time.
CONSTITUENT EQUIPMENT
Buoy: SV-6000ES model Echo Sounder Satellite buoy
Ship station: SV-SC5000 model complete set (PC, buoy management chart with software)
ECHO SOUNDER FUNCTION

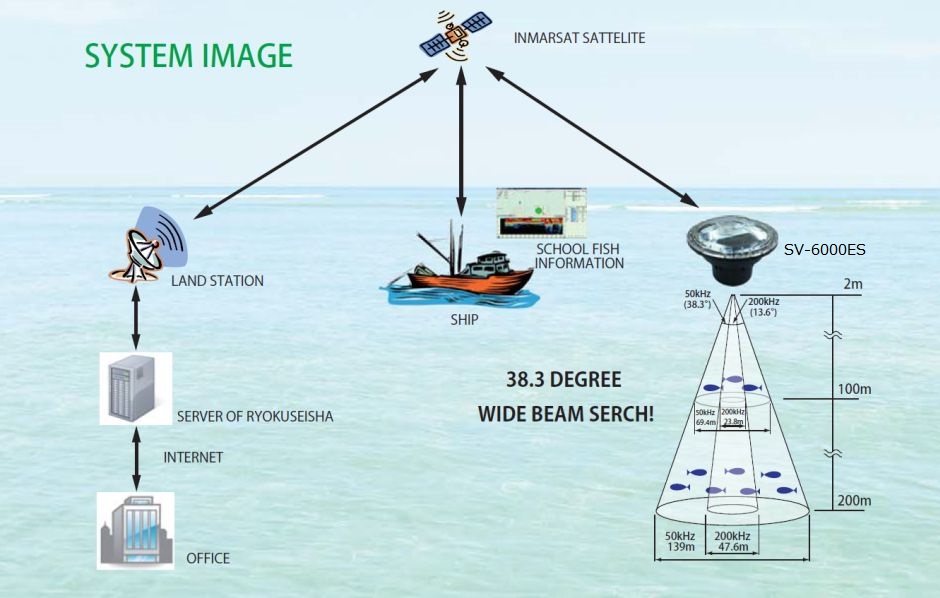

Since it transmits and receives using satellite communication, buoy information can be reliably obtained Information on buoys and operation commands from ship stations are communicated via Inmarsat satellite → ground station → Inmarsat satellite.
It will automatically transmit fish school data every day to the sunrise time of the buoy's waters.
Every hour Total of 24 times schooling fish data sent at Sunrise time.
The transmission interval of the buoy can also be changed by sending a command.
You can know the information of the school of fish around the buoy and become easy to make an operation plan, and fuel costs or charges for fishing in another's territory lead to reduction of the cost.
You can suppose a quantity of school of fish and fish class and the size of fish.
You can see list of plural school of fish information histories, and a change of the quantity of school of fish is clear at a glance.
You can share positional information and school of fish information with sister ship.
It is easy to confirm school of fish information in the most suitable state by GAIN adjustment function .
USABILITY
With easy-to-use ship station display software (BMOP, Buoy-MAX Operation Plotter) you can use buoys with schooling fish information intuitively without stress. Conventional buoys can be used at the same time.
You can use the conventional buoy at the same time, too.
Past data are listed, and comparison analysis is easy.
Buoy response time was shortened within three minutes by the adoption of the Inmarsat IDP system.
The positional information precision of the buoy improved in 1/100 second.
The battery voltage of the buoy is displayed directly and easy to understand.
BUOY BODY
Housing of the SV-1800A type with enough results is adopted for buoy Shellfish and seaweed become hard to attach with the structure of the inner Hull method that a transducer does not go out.
ANOTHER FUNCTION
Useless cost and waste of the time disappear by a theft alert function.
In the case of a desktop PC, buoy position data can be output to plotter, MAXSEA, Google Earth
