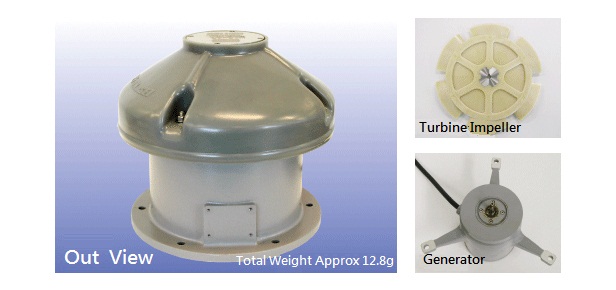

WAG uses the sectorial Well's turbine wing made of the ABS resin, and generates electricity to the wave of the low wave height efficiently. The style made of aluminum article of cast metal tube is used, and this device can be used at ease under a severe system requirements. There are two kinds of three aspect 12V(FTW-12 type) or three aspect 24V(FTW-24 type), and the ratings output voltage of the generator can be used by charging with the storage battery of ratings DC12V or DC24V by rectifying it to direct current.

The voltage rating: ..AC3φ12V.. AC3φ24V
Maximum output: 100W
(2PNCT2mm2-3C captire cable 9m applying)

Material: ABS resin with glass fiber

Material:Anti-corrosive Aluminum Alloy(AC7A-F)

Material: Cross-linked polyethylene

One packing for equipment attachment
(quality of the material: t= 5 mm of EPT rubbers)
6 sets of bolts for equipment attachment
(quality of the material: SUS304 SW, common [ W ], with a nut)

※ Please set up in parallel and use 1 or plurals according to the inside diameter of the tail tube and the wave condition of the buoy installation sea area when you use this WAG as a power supply of the buoy. When the WAG is set up in a fixed structure (breakwater etc.), the air chamber size of the installation sea area should be decided the number of a parallel installation in proportion to the wave condition and the load carrying capacity. It is necessary to do the safety measures against high waves of the installation of the safety valve etc.
